HTD high temperature dryers up to 82°C, PDP +3°C

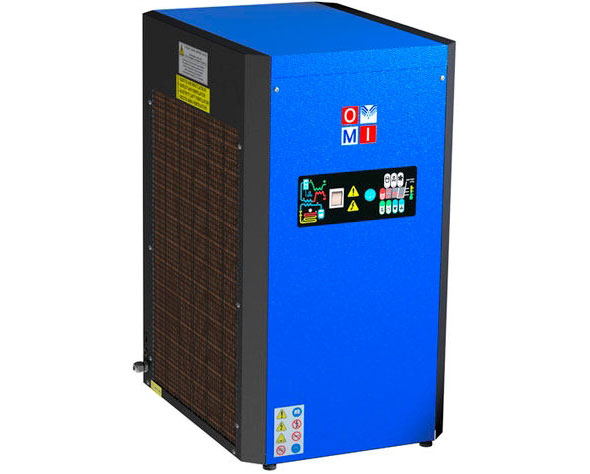

High temperature HTD compressed air refrigeration dryers
Dryer for high inlet air temperature (up to 82°C). These special dryers replace the cooler and filter/ceramic separator. This way we achieve extraordinary space savings, reduce the overall pressure loss and reduce the time required for installation.
The dryers have a timed condensate drain.
Standard reference conditions
- Working pressure: 7 bar (max. 16 bar)
- PDP +3°C
- Ambient temperature: 25°C (max. 45°C)
- Inlet air temperature 60°C (max. 82°C)
Options
- Non-standard voltage: all models available 230/1/60 or 115/1/60
- Connection: all models available with NPT connection.
- Certification: all models are available with UL and CSA.
- Equipped with a lossless condensate drain
| Model | Flow rate m3/h | Data sheet | Model | Flow rate m3/h | Data sheet | |
|---|---|---|---|---|---|---|
| HTD 35 | 35 | HTD 102 | 102 | |||
| HTD 50 | 50 | HTD 140 | 140 | |||
| HTD 70 | 70 | HTD 170 | 170 |
