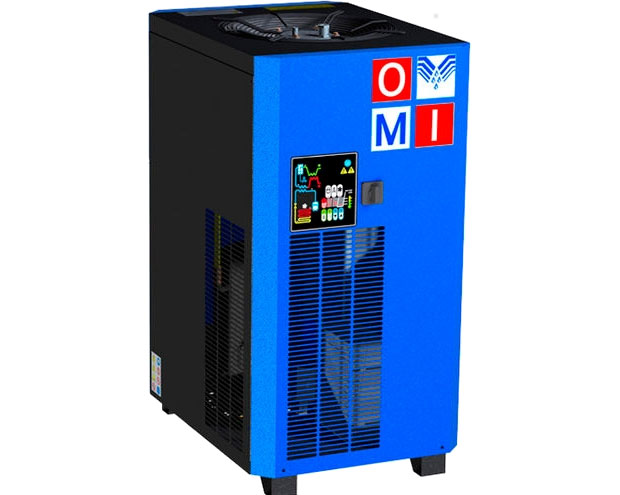

All models are equipped with a high efficiency heat exchanger, including an integrated condensate separator. The heat exchanger is completely designed and developed in OMI laboratories and is able to achieve the highest performance values ​​according to market requirements, together with a very low pressure drop rate. The programmable control panel adapts the fan speed to the load to guarantee constant and high performance under any working conditions. Each unit is equipped with a wide range of adjustable values ​​and output signals - high dew point temperature, frost risk warning, sensor failure, etc.

Standard reference conditions

• Working pressure: 7 bar (max. 16 bar)
• PDP +3°C, class 4 (ISO 8573-1)
• Ambient temperature: 25°C (Max. 45°C)
• Inlet air temperature 35°C (max. 55°C)

ED 18-6800 standard equipment - timed condensate drain, optional equipment with a lossless drain is possible.
ED 8800-24000 have a lossless condensate drain as standard equipment.

Optional options

• ED 18-180 available with a maximum pressure of 25 bar.
• Non-standard voltage: ED 18-480 available in V 230/1/60.
• ED 18-180 available in 115/1/60.
• Connection: ED 18-480 available with NPT connection.
• Certifications: ED 18-360 available with UL and CSA.
• Condensate drain: "intelligent" without loss
