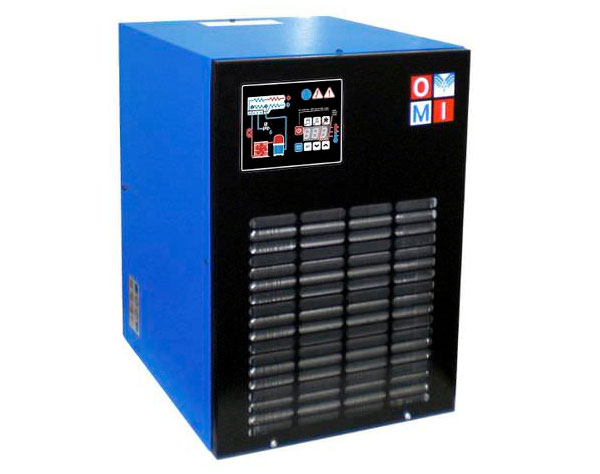

Dolomite, as the only dryer on the market, ensures control over the pressure dew point by changing the speed of the cooling fan, controlled by a microprocessor unit. Thanks to this solution, components such as the hot gas by-pass valve and the pressure switch are eliminated. As soon as the ambient temperature drops below 15°C, the refrigerant compressor is automatically switched off to prevent the dryer from freezing. The control panel offers a wide range of parameters and alarms - low temperature, high temperature, probe failure, alarm history, etc. The new heat exchangers are designed in the OMI laboratories and guarantee the highest level of performance with minimal pressure losses.

Standard reference conditions

• Ambient temperature 25°C, (max. 45°C)
• Working pressure 7 bar, (max. 16 bar)
• Inlet air temperature 35°C, (max. 55°C)
• PDP -7°C, Class 5 according to ISO 8573-1
• DD 36-216: 230V/50-60Hz
• DD 280-340 230V/50Hz

Options

• DD 280-340 230V/60Hz
• NPT connection
