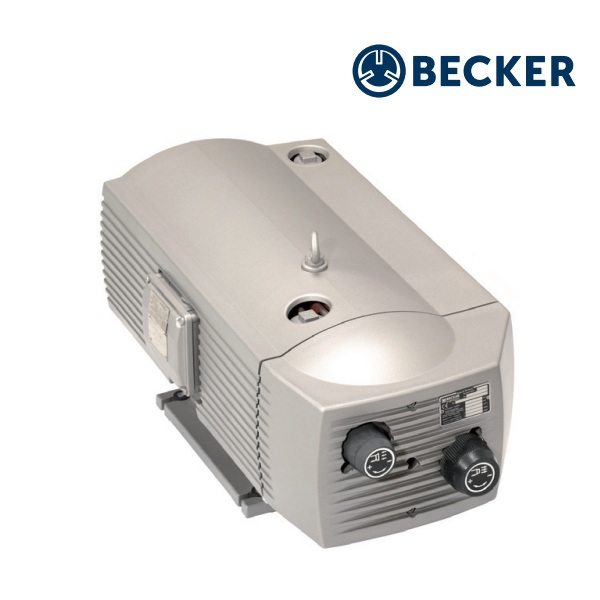

Pressure / vacuum pumps T 4.10 - 4.40
These combined machines are particularly useful in the printing industry, for example in feeding systems.
They operate completely oil-free. The compression part consists of a rotor in a stator with long-lasting graphite lamellae.
The compact housing ensures low noise and reduces heat emissions.
Main features of BECKER combined oil-free devices:
- clean, low noise, precision
- oil-free
- vibration-free
- low noise
- wear resistance
- long lifespan
Technical data
| Type | Volume flow [m3/h] 50/60Hz |
Max. pressure/vakuum [mbar rel. 50/60Hz] |
Max. motor capacity [KW] 50/60Hz |
Data sheet |
|---|---|---|---|---|
| T4.10 DV | 10/12 | ±500/±500 | 0,37/0,45 | |
| X4.10 DV | 10/12 | ±500/±500 | 0,37/0,45 | |
| T 4.16 DV | 16/20 | ±500/±500 | 0,55/0,70 | |
| X 4.16 DV | 16/20 | ±500/±500 | 0,55/0,70 | |
| T 4.25 DV | 25/30 | ±500/±500 | 0,75/0,90 | |
| X 4.25 DV | 25/30 | ±500/±500 | 0,75/0,90 | |
| T 4.25 DSK | 25/30 | ±600/±600 | 1,10/1,30 | |
| X 4.25 DSK | 25/30 | ±600/±600 | 1,10/1,30 | |
| T 4.40 DSK | 35/43 | ±600/±600 | 1,85/2,20 | |
| X 4.40 DSK | 35/43 | ±600/±600 | 1,85/2,20 |
