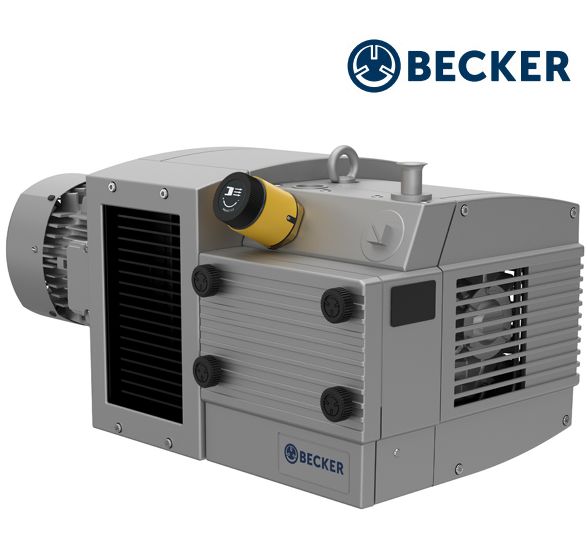

Becker KDT up to 129m3/h
Rotary vane blowers operate completely without oil. The compression part consists of a rotor in a stator with graphite vanes with a long service life. Integrated suction paper filters and control valves are part of the standard equipment. The casing ensures low noise and ideal contact of the cooling air with the surface of the working parts. For the possibility of suctioning media with higher air humidity, a so-called anti-corrosion version is offered, which, among other technical changes, includes a polyester suction filter.
Technical data
| Data sheet | Volume flow | Max. pressure | Operating instructions |
|---|---|---|---|
| m3/h | mbar rel. | ||
| KDT 3.60 3kW | 54 | +1500 | |
| KDT 3.80 4kW | 66 | +1500 | |
| KDT 3.100 5,5kW | 99 | +1500 | |
| KDT 3.140 7,5kW | 129 | +1500 | |
| KDX 3.60 3kW | 54 | +1500 | |
| KDX 3.80 4kW | 66 | +1500 | |
| KDX 3.100 5,5kW | 99 | +1500 | |
| KDX 3.140 7,5kW | 129 | +1500 |
The blower performance in the table is related to an atmospheric pressure of 1000 mbar abs., a temperature of 20°C and 50Hz.
- the blower motor speed can be manually regulated
- the blower can automatically maintain the set overpressure

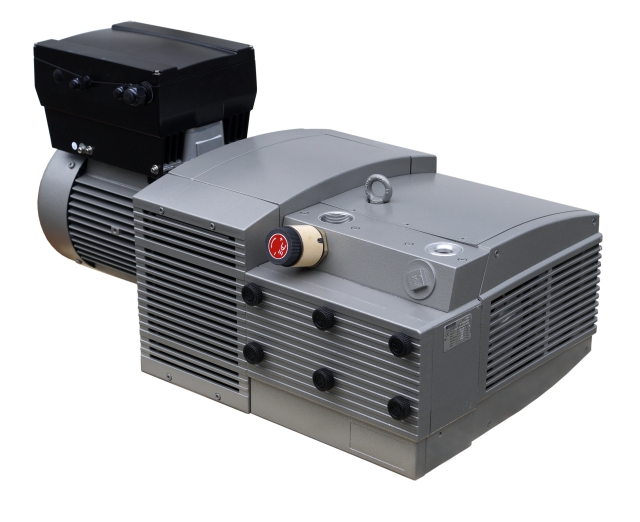

Energy-efficient operation, automatic regulation and protection of the device against exceeding design parameters.
| Type | Suction capacity | Max. pressure | Data sheet |
|---|---|---|---|
| m³/h | mbar rel. | ||
| KDT 3.80/0-400 4kW 400/3/50, 30-60Hz | 38-77 | +1500 | |
| KDT 3.100/0-400 7,5kW 400/3/50, 30-60Hz | 57-118 | +1500 | |
| KDT 3.140/0-400 7,5kW 400/3/50, 30-60Hz | 81-150 | +1500 |
The blower performance in the table is based on an atmospheric pressure of 1000 mbar abs. and a temperature of 20°C.
