400-624 m3/h

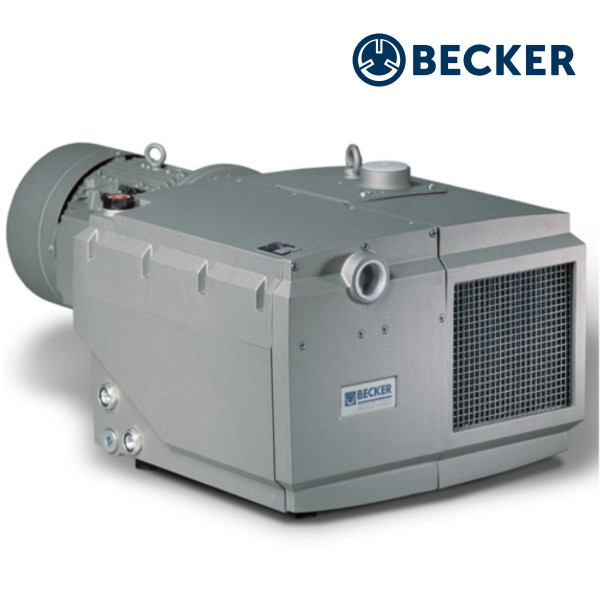

The vane oil pump has a simple design with a single shaft and direct drive, which creates a robust device with a long service life and low maintenance and operating costs. The vanes are displaced by controlled oil dosing. A check valve and effective oil separation are integrated in each pump. A float valve reliably regulates the flow of return oil, even at high vacuums. Additional accessories can be supplied with these pumps
| Type | Volume flow | Max. vacuum | Data sheet | |
|---|---|---|---|---|
| m3/h4) | mbar abs. | kW | ||
| U 4.400 SA/K | 435 | 3 | 11,0 | |
| U 4.400 F/K | 435 | 0,5 | 11,0 | |
| U 4.630 SA/K | 624 | 3 | 15,0 | |
| U 4.630 F/K | 624 | 0,5 | 15,0 |
The maximum suction quantity is specified at an atmospheric pressure of 1000 mbar abs., a temperature of 20°C and a frequency of 60Hz.
